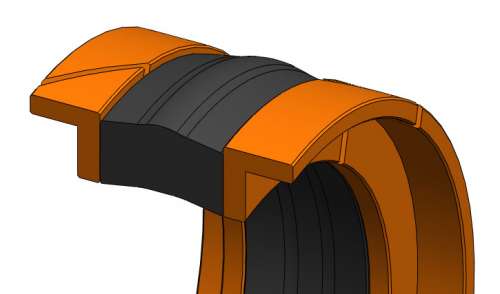

Double Acting Piston Seal DP

The AB Seals DP, piston seal with hard bearing rings gives a very heavy duty

seal assembly for split pistons. It helps the designer to use larger clearances

and, with the integral bearing rings, to restrict the piston length. The main seal

is nbr with fabric which is compressed by the housing to obtain an effective low

pressure seal. With increase in pressure rubberized seal energizes the ‘U’ section

increasing the sealing area and improving the sealing capacity.

• Well proven design

• Tolerant to contamination

• High pressure capability

• Truck Cranes

• Forklift and handling machinery

• Mobile Hydraulic

• Machine Tools

• Standard Cylinder

•Main Seal - NBRC

•Bearing -DE

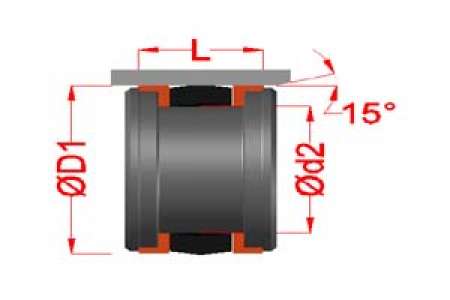

Part No.	D1	d2	L	Material
DP402524/36	40	25	24/36	NBRC/DE
DP503418/309	50	34	18/30.9	NBRC/DE
DP503524/36	50	35	24/36	NBRC/DE
DP604031/45	60	40	31/45	NBRC/DE
DP634824/36	63	48	24/36	NBRC/DE
DP705031/45	70	50	31/45	NBRC/DE
DP806031/45	80	60	31/45	NBRC/DE
DP907031/45	90	70	31/45	NBRC/DE
DP1008031/45	100	80	31/45	NBRC/DE
DP1109031/45	110	90	31/45	NBRC/DE
