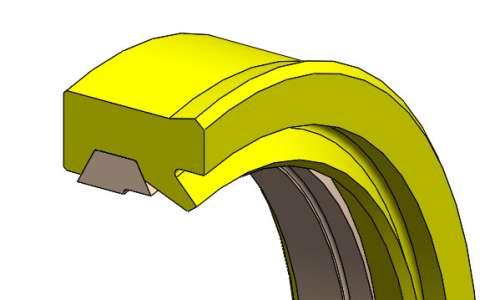

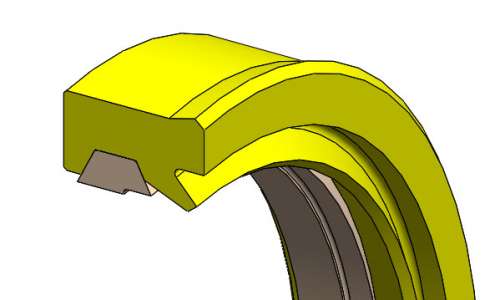

Tandem Rod Seal
The AB seals TSR, sealing is used to seal piston rod. The TSR seal consists of 2 parts, an external sealing ring or Polyurthane with sealing lips, and an internal slide ring of abrasion proof P.T.F.E. bronze compound with sealing edges. The slide rings surrounded by the sealing ring and moves axially in direct contact with the piston rod.
- Ultra low friction
- Compact housing
- Truck cranes
- Forklift and handling machinery
- Agriculture equipment
- Mobile hydraulics
- Machine tools
- Standard cylinder
-
Main seal- PTB4 / PTB6Polyurethane PUA/PUB /PUAB/PU95

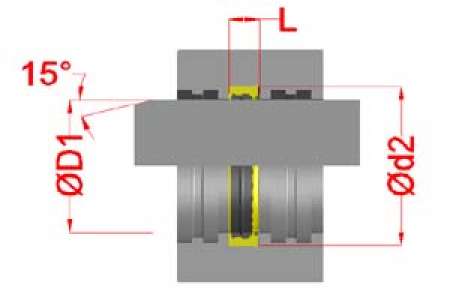

| Part No. | D1 | d2 | L | Material | Quantity | Actions |
|---|
