Secondary Seal For Piston Or Turcon SSP-TR
The Turcon Piston seal SSP is a compact seal for light to medium duty hydraulic
application. This is a double acting piston seal with single acting capabilities.
This makes it an excellent choice for double acting applications where minimal
dynamic leakage is required. The housing width allows a narrow width piston to
be used, but it is recommended that an adequate bearing is mounted on one or
both sides of the seal.
- Double acting seal with single acting capabilities
- Excellent wear resistance
- High extrusion resistance
- More tolerant to dirt and contamination than common PTFE faces
- Rapid recovery after assembly
- Advanced face geometry provides
- Enhanced dynamic and static sealing
- ISO 7425 housing
- Mobile hydraulics
- Agriculture equipment
- Machine tools
- lift platforms
-

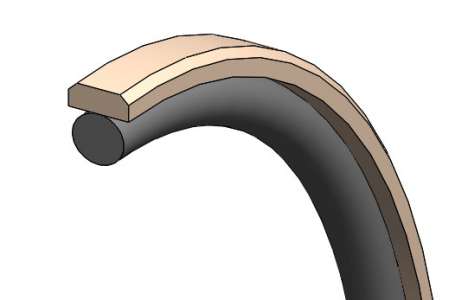

Main seal- PTB4 / PTB6
-
O'ring- NBR 75 / VKM75

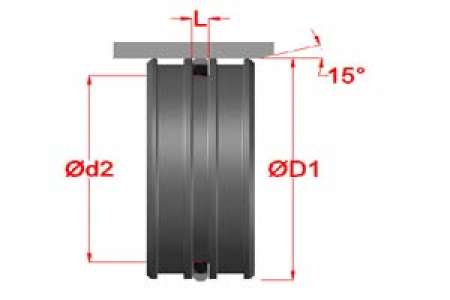

| Part No. | D1 | d2 | L | Material | Quantity | Actions |
|---|
