Double Acting Slide Ring For Seal - SRS/GD1000K

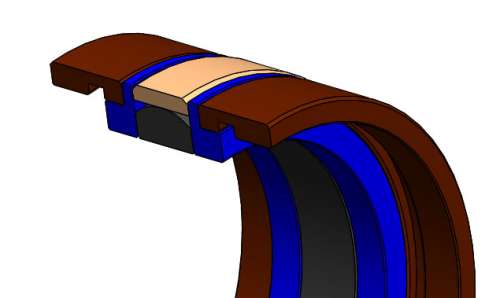

The Slide ring seal for piston SRS acts a double acting hydrulic seals. Its construction prefers for heavy duty machinery cylinders. The SRS consist of 6
part, an elastic internal ring of NBR, a sealing ring of abrasion proof PTFE bronze compound,two lateral support ring of Polyurethane and two bearing rings of
pressure resistant PGF30 compound.The elastic internal ring provides initial pressure by means of which the side ring is pressed against the cylinder wall even in the pressure is less.
- Well proven design
- Tolerant to contamination
- High pressure capability
- Mobile hydraulics
- Agriculture equipment
- Machine tools
- Injection cylinder
- Hydraulic presses
- Lift platforms
-
• Slide ring - PTB4/PTB6• Support ring- PUS / TF01• Energizer - NBR75 / VKM75• Bearing - PGF30

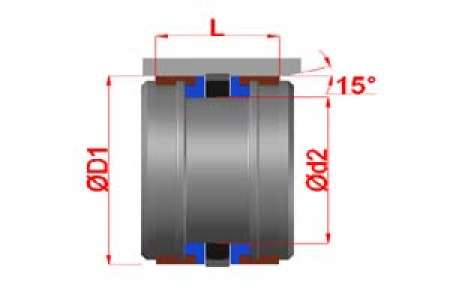

| Part No. | D1 | d2 | L | Material | Quantity | Actions |
|---|
