Double Acting Compact Piston Seal - CP/GKD

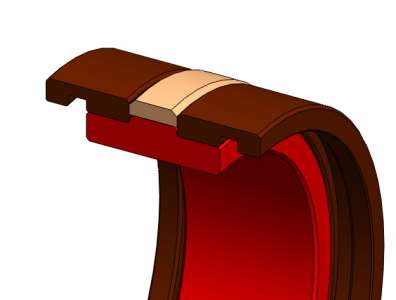

The AB Seals compact slide ring seal acts as a seal and bearing element for
piston with double acting hydraulic cylinders. The CP seal consists of 4 parts,
an elastic internal ring of Polyurethane, a slide ring of abrasion proof P.T.F.E.
bronze compound as the actual sealing ring and two bearing rings of Polyamide
compound. The onset of pressure compresses the elastic internal ring axially
so that the slide ring is pressed more securely against the cylinder wall and the
sealing effect is increased.
• Well proven design
• Long life economic sealing and guiding solution.
-
• Mobile hydraulics• Machine tools•Standard cylinder
• Elastic internal ring-
PUA/PUB
• Slide ring - PTB4/PTB6
• Bearing- PGF30

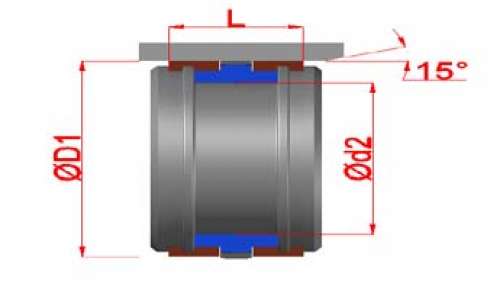

| Part No. | D1 | d2 | L | Material | Quantity | Actions |
|---|
